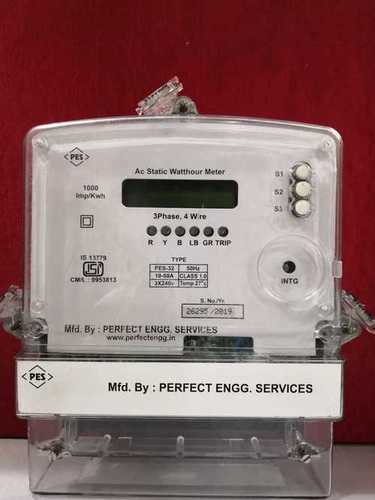

Three Phase Dual Source Prepaid Energy Meters

Product Description

With an expertise of more than 3 years in this domain, we have become one of the leading manufacturers and suppliers of Three Phase Dual Source Prepaid Energy Meters. To comply with the set industry norms and standards, this meter is manufactured using high quality materials at our state-of-the-art facility. Widely used in residential, commercial and industrial sectors this meters is available in various customized specifications. Three Phase Dual Source Prepaid Energy Meters can be availed from us in different models and technical specifications as per requirements.

Features:

• Compact design
• Simple and hassle free maintenance

• Large LCD display

 Specification

Product Specifications

• Measure Standard - IS: 13779,
• Dimension (L x W x H) -225 x 175 x 85 (mm)
• Weight (kg)- 2 kg
• Starting current- 20mA
• Accuracy class- Active: class1.0
• Measure parameter-KWH; KW MD, Kvah, Kva
• Other functions-  Measure AC Main Power and DG supply Configure to Prepaid and Postpaid
• Meter type- 3 Phase; 4 Wire system
• Rating current/voltage- 10-60 A, 3x240v/ 415v
• Meter impulse- 1000 imp/kWh
• Environment Temperature -Operating temperature range: -100C +600C
• Power consumption- V Circuit < 2W/10VA,I circuit <0.5VA per phase
• Power Factor- 0 lag-unity-0 lead
• Voltage & Frequency range- 3x240v/ 415v (-40% to +20%) at 50 Hz (5%)
• Short over current -30 Imax
• Storage and transport temperature range: -400C +800C
• Humidity Relative Humidity: Up to 95% non condensing
• Material -Engineering plastic (Polycarbonate
• Relay Type -Three Phase integrated relay for Load control
